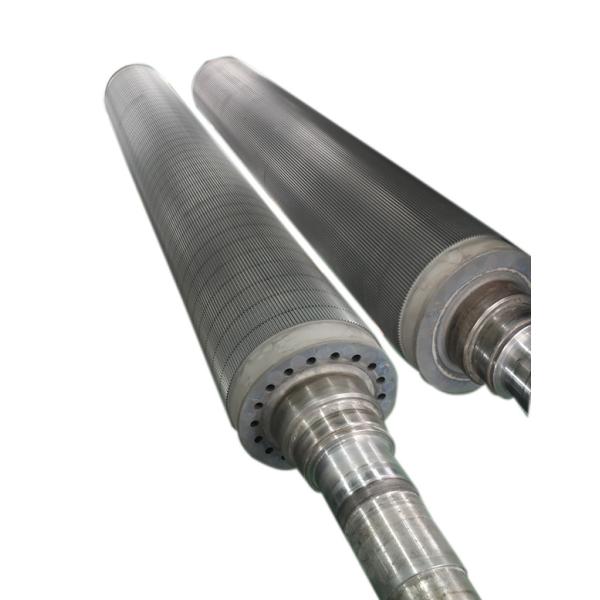

Packaging Box Machine A Flute Corrugating Rolls

  • 1
  • 2

Brand Name : YH

Model Number : 1900-320

Place of Origin : Made in China

MOQ : 1set

Price : $10000-$35000/set

Payment Terms : T/T

Supply Ability : 1500 sets per year

Delivery Time : 60-90 days

Packaging Details : Wooden Boxes

Material : 50CrMo precision forged alloy steel

Coating : 60-80μm, American Praxair super hard 1342 tungsten cabide powder

Width : 1900mm ×Φ320mm

Heating treatment : Intermediate frequency quenching

Hardness : >HRC58 after hardening

Flute type : A flute

Warranty : 30million linear meters or 1 year, whichever comes first

Finishing : Ra <0.6μm

Certification : ISO9001

Contact Now

A Flute Tungsten Carbide Corrugating Rolls For Corrugated Packaging Box Machine

Flute Profile

Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.

Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design

Packaging Box Machine A Flute Corrugating Rolls

Introduction

The largest professional corrugated roller manufacturer in northern of China
50CrMo refined forging steel supplied by the best manufacturer in China.
A, C, B, E, F, G, N flute corrugated rolls
High Speed can reach to 250-300m/min
American Praxair JP8000 HVOF tungsten carbide plating equipment
American Praxair super-hard 1342 tungsten carbide powder
Medium frequency quenching heating treatment machine makes the hardness of base steel more than HRC58 and harden layer 8-12mm.
High precision and high performance CNC grinding machine equipped with Germany Siemens control system.
We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement. The flute profile is more reasonable, suitable to customer’s machine
Tungsten carbide corrugated roll lifetime is 3-5 times longer than hard chrome roll because of its excellent wear-resisting property
Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.
Supply corrugated rollers for all kinds of corrugator line such as Fosber, BHS, BW Paper System, K&H, HSIEH HSU,Fuli, Wanlian, TCY, Champion, West River, Mingwei and so on.

Packaging Box Machine A Flute Corrugating Rolls


Product Tags:

A Flute Corrugating Rolls



Packaging Box Machine Corrugated Roller



A Flute Tungsten Carbide Rolls
